18W 1018L Large Capacity Portable Uninterruptible UPS Power Supply

6 Slot - 5V 9V 12V

Features:

1. The product is free of welding and users can freely disassemble and replace the battery

2. Equipped with DC equal voltage UPS function, achieving automatic charge and discharge management without manual involvement

3. Multiple output functions, covering commonly used 5V, 9V, 12V voltages such as optical modem, router, surveillance camera, etc

4. Through strict quality control, ensure long-term stable operation and extend service life

5. The product has stable performance, with a peak output power of up to 60W

Product Parameters:

Battery capacity: 6 * 3.7V * 3400mAh=74 watt hours (battery to be provided by the user)

Rated output power: 12V5A=60W; The actual output power comes from the battery's own output power

Output voltage: independent output 12V3-5A; 9V1A； USB5V2-3A； Enabling UPS functionality requires meeting input power conditions

The product does not stabilize voltage, and the battery is directly connected in series for output. The voltage increases or decreases with the amount of electricity

Suitable for high-power electrical appliances, motors, LED lights, speakers, solenoid valves, printers, etc. that do not require voltage stabilization

Applicable battery: 3.7V cylindrical flat head 18650 battery (recommended power battery)

Charger type: Internal charging current limiting circuit, can be charged with a 12-13V adapter. When using UPS, the larger the input power, the more stable it is

Charging power: Input adapter power meets>=total load power+6W battery charging power

Overcharge protection: 4.25V * 3

Low voltage protection: 2.75V * 3

Overcurrent detection voltage: 0.1V+-0.025V

Temperature range: -20~60 ℃

DC interface standard: DC 5.5 * 2.1mm (positive inside and negative outside)

Notes:

1. Spring to negative pole, copper sheet to positive pole. Do not install them in reverse, as they will burn!!!

2. Use high-quality batteries and require strict pairing. Each individual battery in the battery pack should have consistent parameters as much as possible

3. This product can only use flat 18650 batteries, and pointed batteries with a length of more than 2MM cannot be used

Packing list:

Welding free battery box * 1

0.3 meters * 1

EU/US

Features:

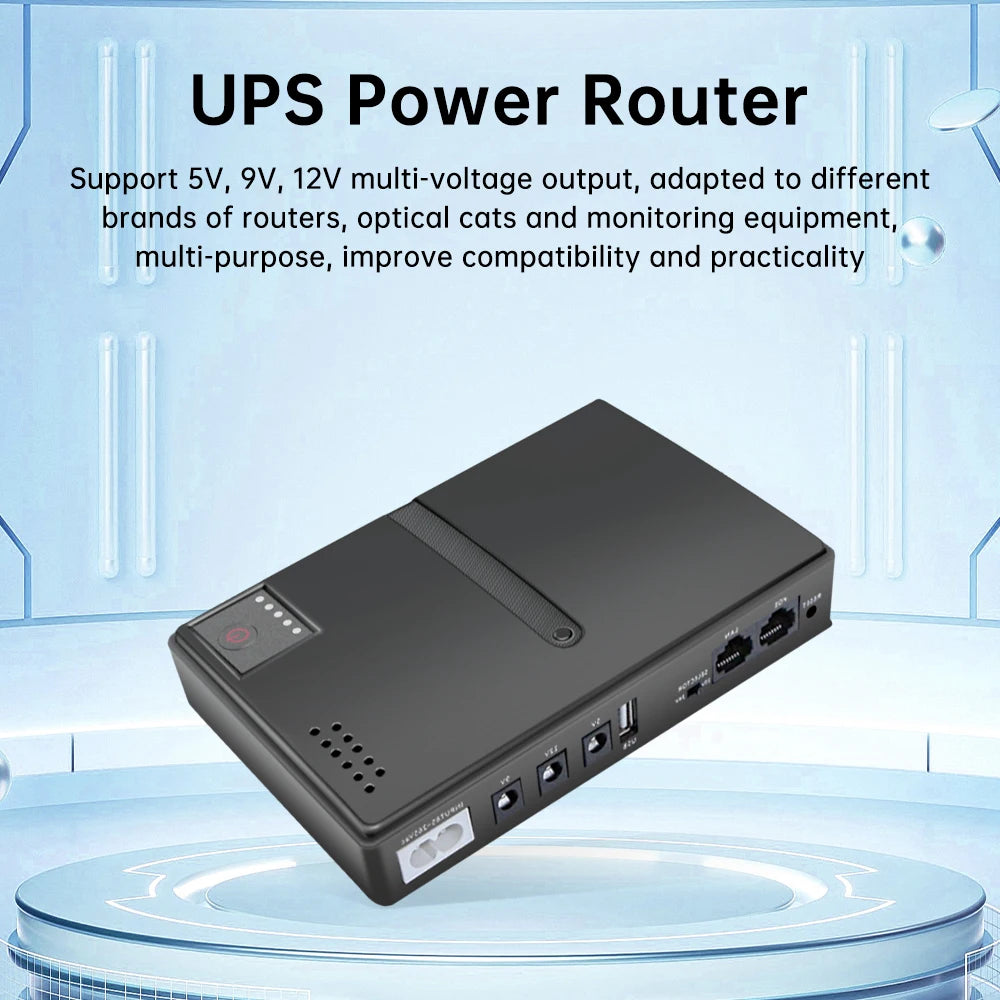

1. Supports multiple voltage outputs of 5V, 9V, and 12V, compatible with routers, optical modem, and monitoring devices of different brands and models, with one machine for multiple purposes, enhancing compatibility and practicality

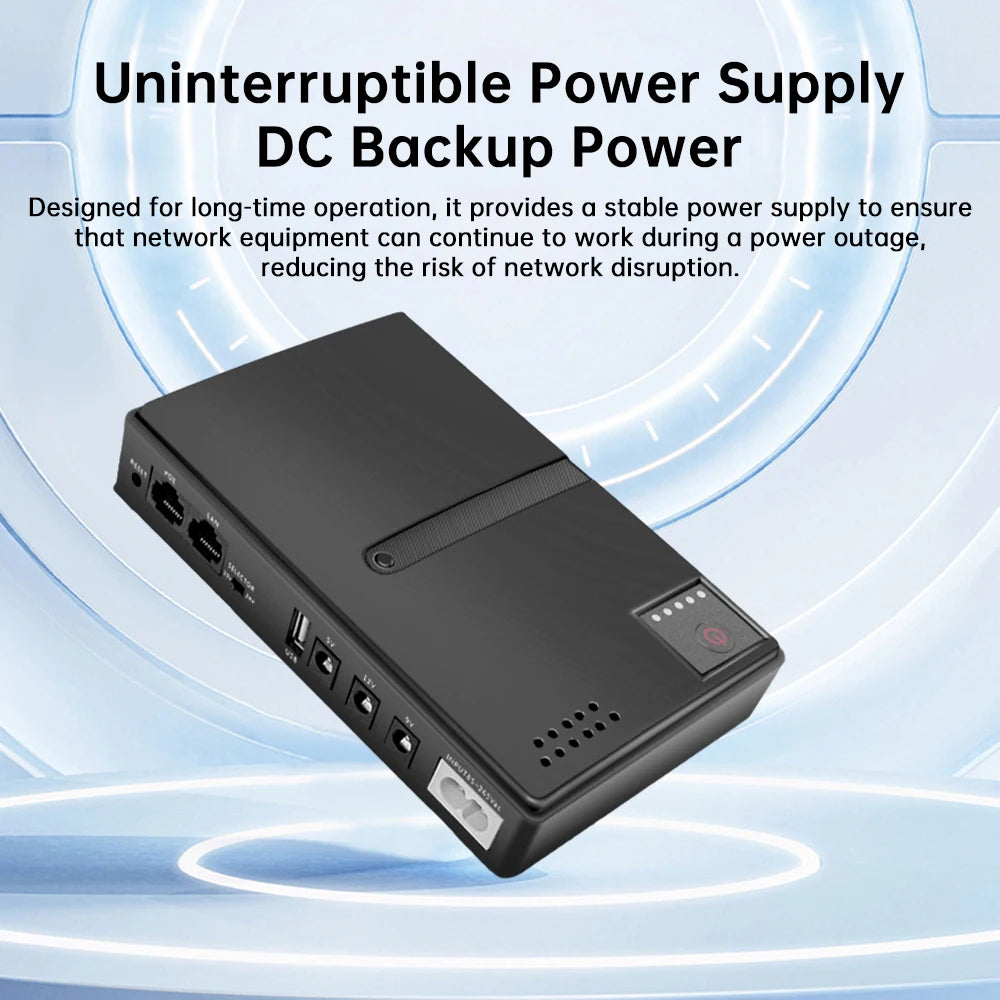

2. Specially designed for long-term operation, providing stable power supply to ensure that network equipment can continue to work during power outages, reducing the risk of network interruption

3. Built in intelligent chip, automatically detects connected devices, optimizes power distribution, and has low power reminder function to effectively manage power usage

4. Designed with replaceable batteries, the 4-cell flat 18650 battery is easy to disassemble and can be replaced at any time without worrying about battery life when on the go

5. Compact in size and easy to carry, it can easily handle both home backup and outdoor work, meeting the needs of mobile office and temporary control

Product Parameters:

Input: AC85-265V

Frequency: 50-60Hz

output:

USB 5V/2A

DC 5V/2A

DC 9V/1A

DC 5V2A

DC 12V/1A

POE 15V/0.6A

POE 24V/0.6A

Output power (maximum): 18W

Working temperature: 0 ℃~45 ℃

Humidity: 10% -90% RH

Power supply: Flat 18650 batteries * 4 (not included in shipment)

Notes:

1. Use 18650 lithium battery and install in the indicated direction

2. The discharge rate of the battery used is 2C/3C

3. During installation, ensure that the voltage of the four batteries is consistent (with an error of less than 0.05V)

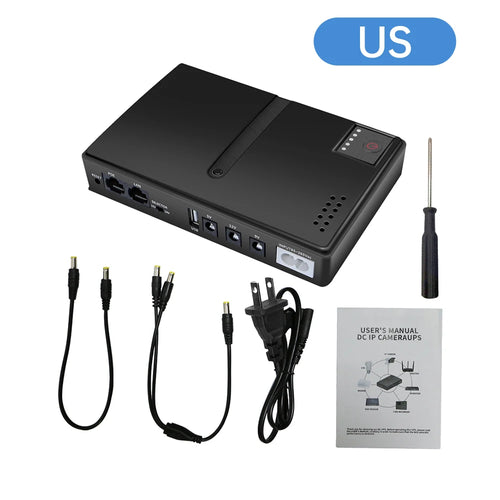

Packing list:

UPS uninterruptible power supply * 1 (excluding battery)

Power cord *1

One to two line * 1

One to one line * 1

Screwdriver * 1
